Vantage in Korea also made equptment. Here are my findings.


Vantage Guitar Amplifiers

VG-10
10 watts guitar amp.
6,5″ speaker
Overdrive switch
Gain level
Master volume
Treble, mid and bass tone controls.
Headphone jack.

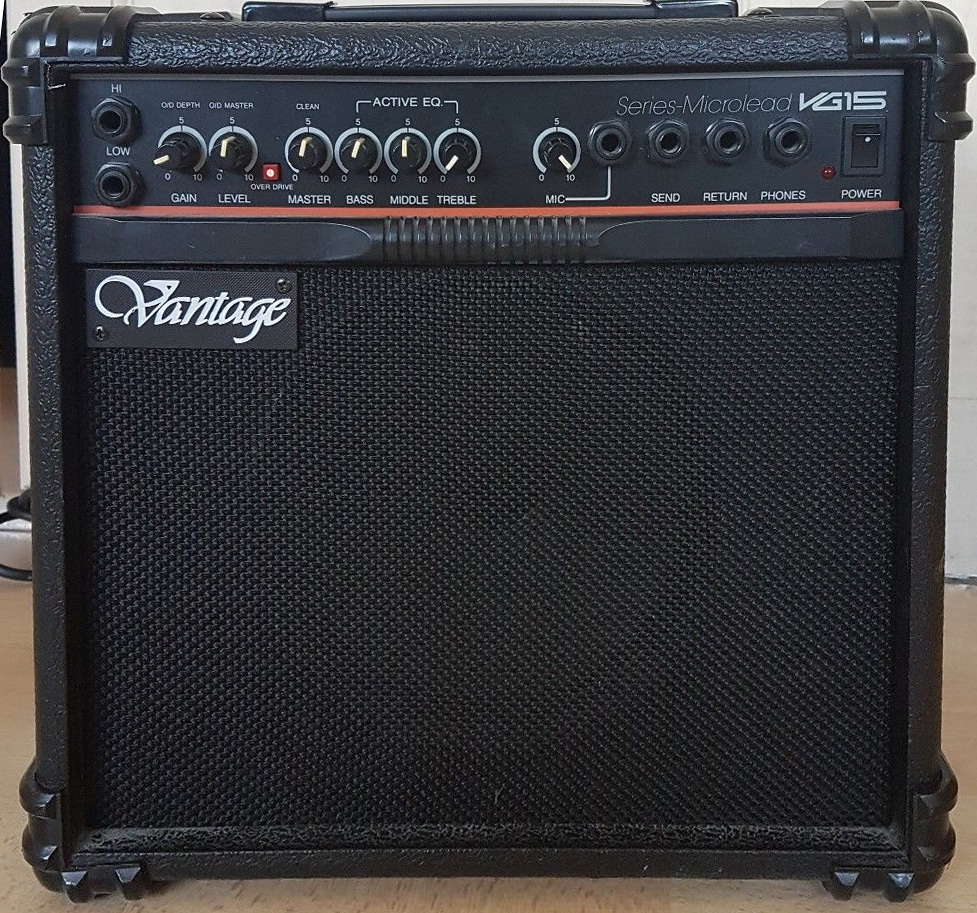

VG-15
l5 watts guitar amp.
High and low inputs.
8″ speaker.
Overdrive switch
Gain level
Master volnme
Treble, mid and bass tone controls.
Headphone jack.

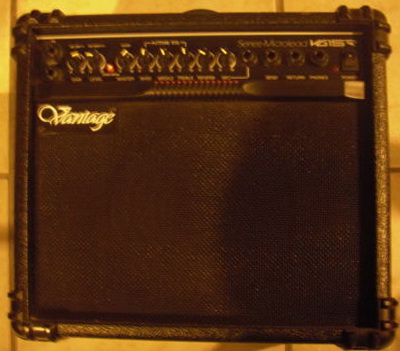

VG-15R
15 watts guitar amp w/ reverb
High & low inputs
8″ speaker
Overdrive switch.
Gain level
Master volume
Treble, mid and bass tone controls.
Headphone jack.

VG-30R
30 watts guitar amp w/reverb
High and low inputs.
10″ speaker.
Overdrive switch
Gain level
Master volume
Treble, mid and bass & presence tone controls.
Headphone jack
Line out-put
Foot switch jack.

VG-50R
50 watts guitar amp w/reverb
High and low inputs.
12″ speaker.
Overdrive switch
Gain level
Master volume
Treble, mid and bass & presence tone controls.
Headphone jack
Line out-put
Foot switch jack
Effects loop.

Vantage Bass Amplifiers

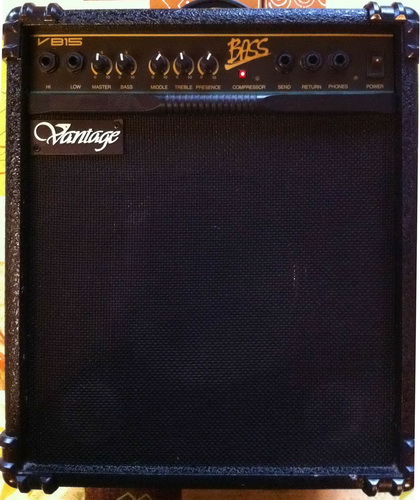

VB-15
15 watts
Hiigh & low in-puts
8″ speaker
Master volume.
Treble, mid, bass and presence tone controls.
Compression switch
Effects send & return
Headphone jack.

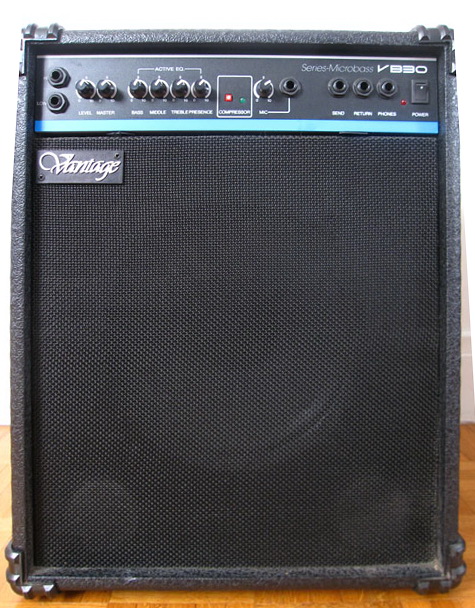

VB-30
30 watts
Hiigh & low in-puts
10″ speaker
Master volume.
Treble, mid, bass and presence tone controls.
Compression switch
Effects send & return
Headphone jack.

VB-50
50 watts
Hiigh & low in-puts
12″ speaker
Master volume.
Treble, mid, bass and presence tone controls.
Compression switch
Effects send & return
Headphone jack.

Vantage Powered Mixers

VPM-5150
150 watts rms
5 band graphic EQ
Master volum, Master monitor, Master reverb
Aux level, Aux. in /stereo, Tape in
Effects send & return
Monitor output, Main out, main in
Each channel has level / high & low tone, monitor and effects loop
Phantom power.

VPM-5300
300 watts rms
5 band graphic EQ
Master volum, Master monitor, Master reverb
Aux level, Aux. in /stereo, Tape in
Effects send & return
Monitor output, Main out, main in
Each channel has level / high & low tone, monitor and effects loop
Phantom power.

Vantage Non-Powered Mixers

VX-10
8 x 4 x 2
8 channel stereo mixer
3 band EQ
4 aux in/out, pan, fader, trim, monitor controls.
XLR mic & 1/4″ line ins
XLR & 1/4” outputs.

VX-12
10 x 4 x 2
10 channel stereo mixer
3 band EQ
4 aux in/out, pan, fader, trim, monitor controls.
XLR mic & 1/4″ line ins
XLR & 1/4” outputs.

VX-16
12 x 4 x 2
12 channel stereo mixer
3 band EQ
4 aux in/out, pan, fader, trim, monitor controls.
XLR mic & 1/4″ line ins
XLR & 1/4” outputs.

Vantage Power Amps

VP-200
Two channels
100 watts into a 4 ohm load per channel
200 watts bridged @ 8 ohm
Frequency response 20Hz – 20KHz 0,1% THD
Two 1/4″ unbalanced and two xlr balanced inputs
5 way binding post out put connector
Dimensinn. 19″ x 2″ x 14 1/2″

VP-300
Two channels
150 watts into a 4 ohm load per channel
300 watts bridged @ 8 ohm
Frequency response 20Hz – 20KHz 0,1% THD
Two 1/4″ unbalanced and two xlr balanced inputs
5 way binding post out put connector
Dimensinn. 19″ x 3,5″ x 14 1/2″

VP-500
Two channels
250 watts into a 4 ohm load per channel
500 watts bridged @ 8 ohm
Frequency response 20Hz – 20KHz 0,1% THD
Two 1/4″ unbalanced and two xlr balanced inputs
5 way binding post out put connector
Dimensinn. 19″ x 3,5″ x 14 1/2″

VP-800
Two channels
400 watts into a 4 ohm load per channel
800 watts bridged @ 8 ohm
Frequency response 20Hz – 20KHz 0,1% THD
Two 1/4″ unbalanced and two xlr balanced inputs
5 way binding post out put connector
Dimensinn. 19″ x 3,5″ x 14 1/2″

Vantage Guitar Tuner

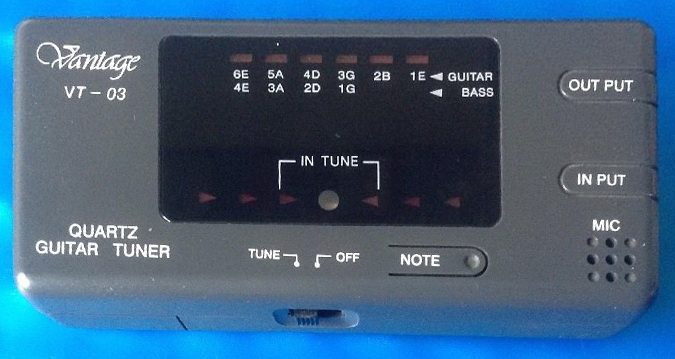

VT-03
Quartz Guitar tuner
Guitar and bass
1/4″ jack input
1/4″ jack direct output
9v
