From a catalog:
Vantage Avenger AV325 Series
The consummate rock & roll guitar in terms of power, tonal flexibility and a dynamic “look”,
the Avenger AV325 solid body features a contoured natural ash body for strength, brilliance
and playing comfort.
Two opencoil Vantage #450PF humbucking
pickups generate plenty of raw, richly detailed power while individual puch/pull switches
built into each tone controll activate special coil tap circiuts for that biting, razor-edged
sound demanded by many of today’s guitarists.
The Avenger AV325 Series guitar is available in a choice og tough and
lustrous translucent color finishes.
|
| Specifications |
Data |
|
| Body (material & construction) |
Solid Japanese Ash with high-gloss translucent finishes. |
| Neck (material & construction) |
3-ply Rock Maple detachable design with adjustable truss rod. |
| Truss Rod Cover |
The early models did’t have any. Later bellshaped covers. |
| Fingerboard |
Hard maple with brass nut. |
| Scale |
25 1/2 inches |
| Number of frets |
22 frets |
| Pickups |
Two #450PF custom-engeneered humbucking pickups.
(1982-catalog: OH-450 pick-ups) |
| Controls |
Two Volum
Two Tone controls with push/pull switch for coil tap operation.
3-way Toggle Switch |
| Bridge |
All brass, two-way adjustable bridge/tallpiece.
(1982-catalog: Gold plated) |
| Tailpiece |
Thru-body type |

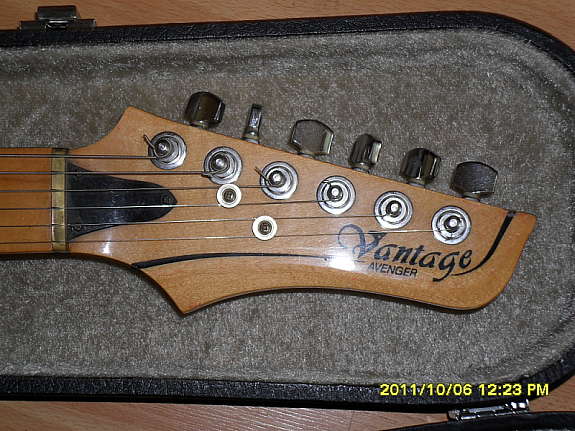

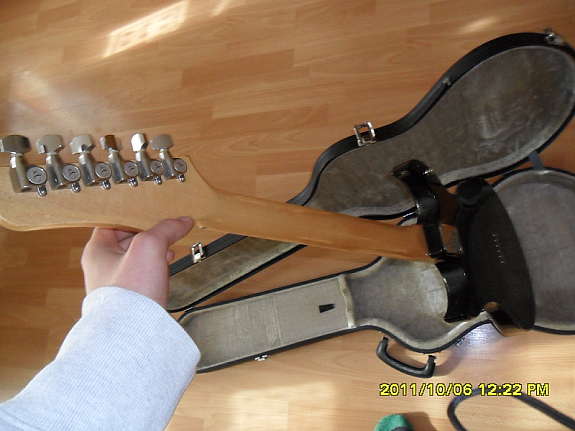

| Tuners |
Six-on-a-side individual precision tuners. |
| Knobs |
Non-slip black speed plastic knobs. |
| Hardware |
Chrome |
| Finishes |
CW (Gloss Cherry Wine)
NB (Gloss Navy Blue)
STB (Gloss Translucent Black)
WA (Gloss Walnt) |
| In production |
1981 |
|
Sources:
Vantage Tech Sheet

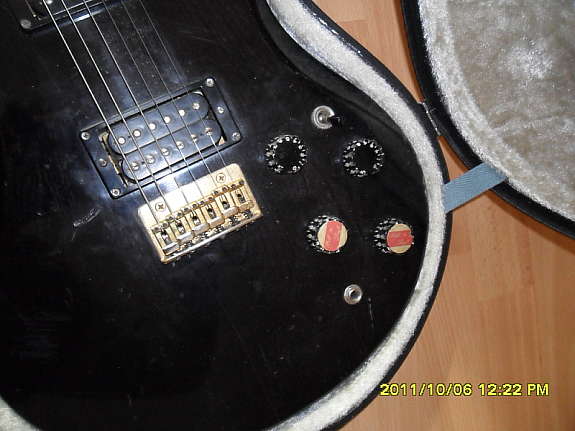

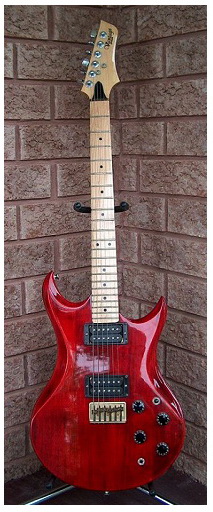

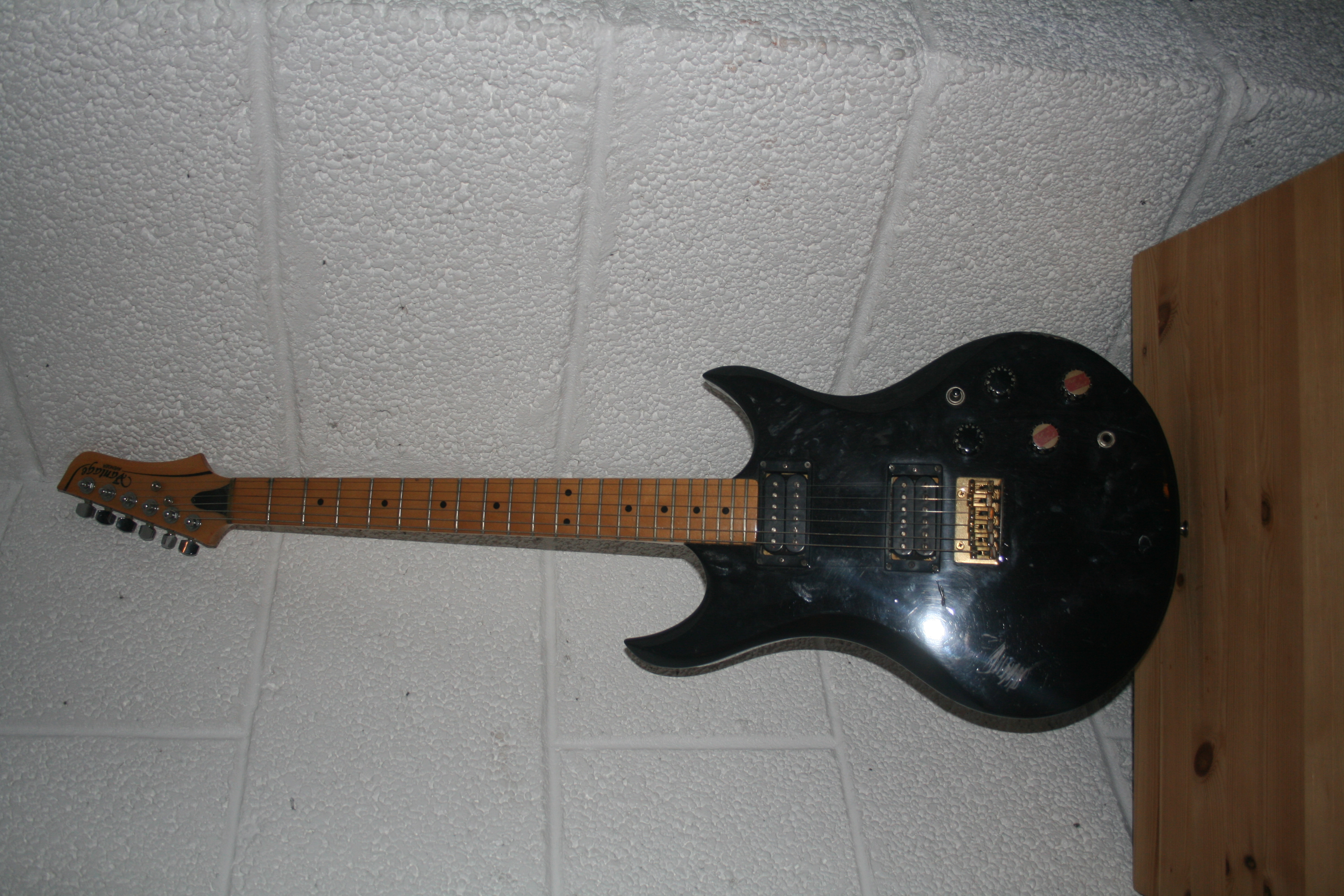

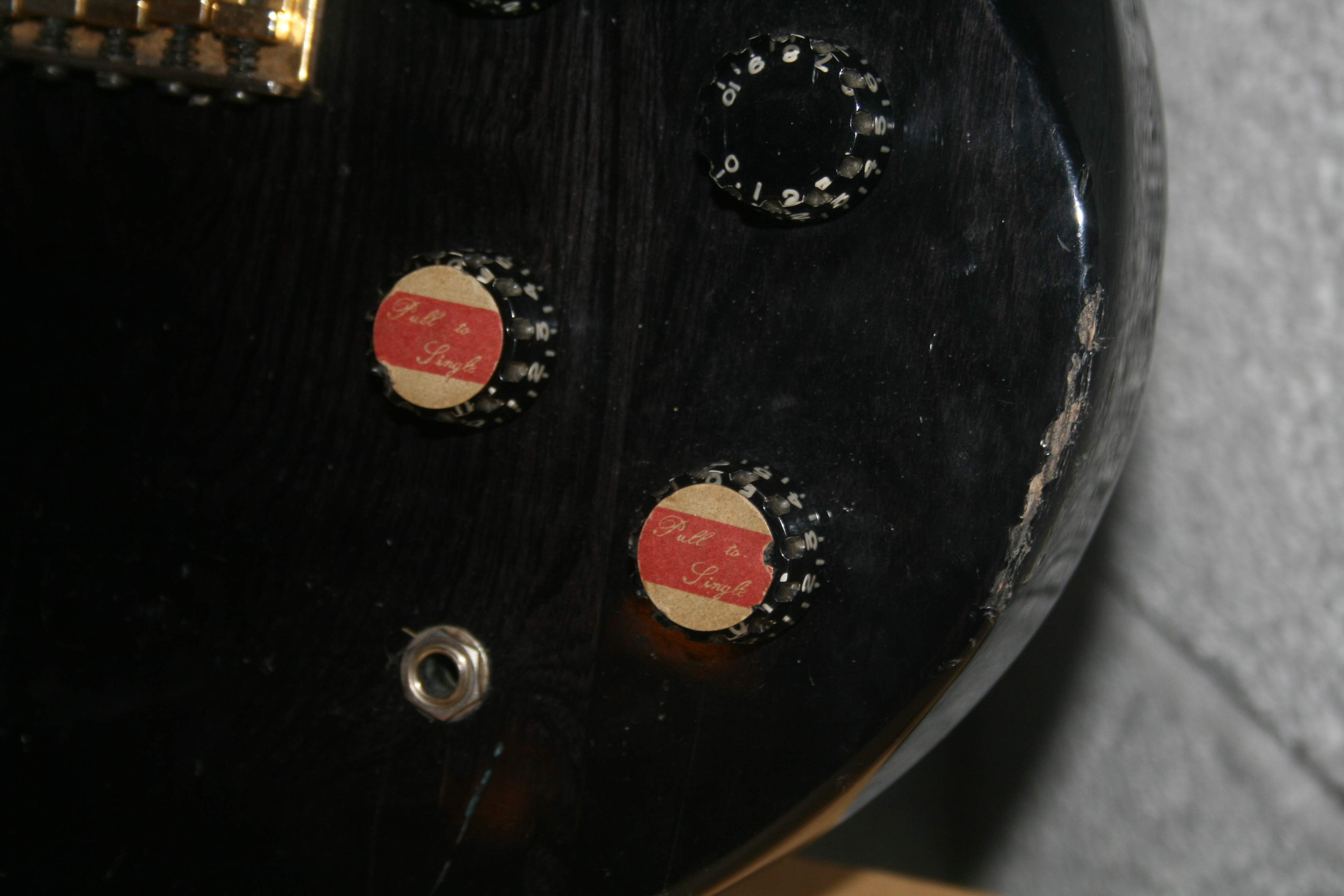

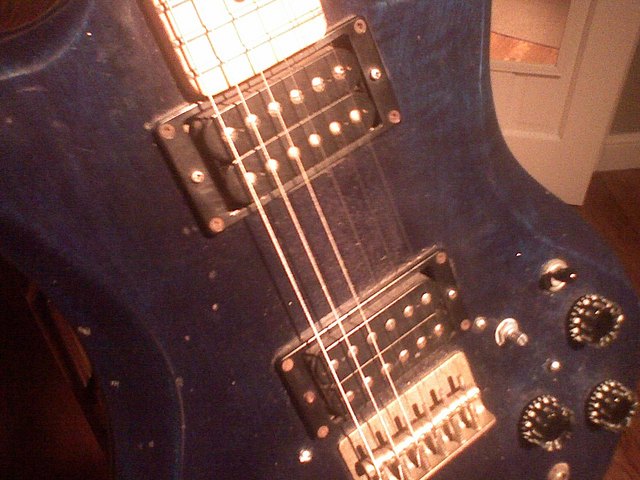

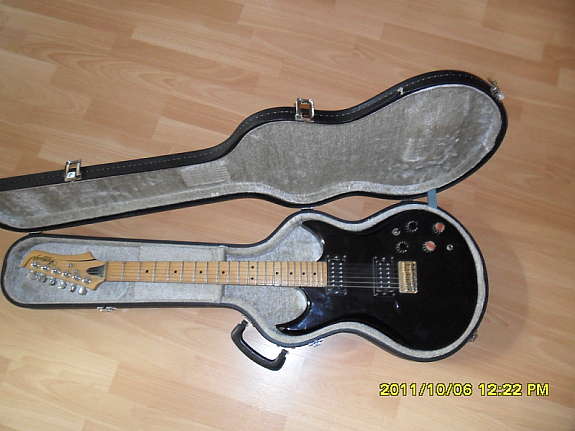

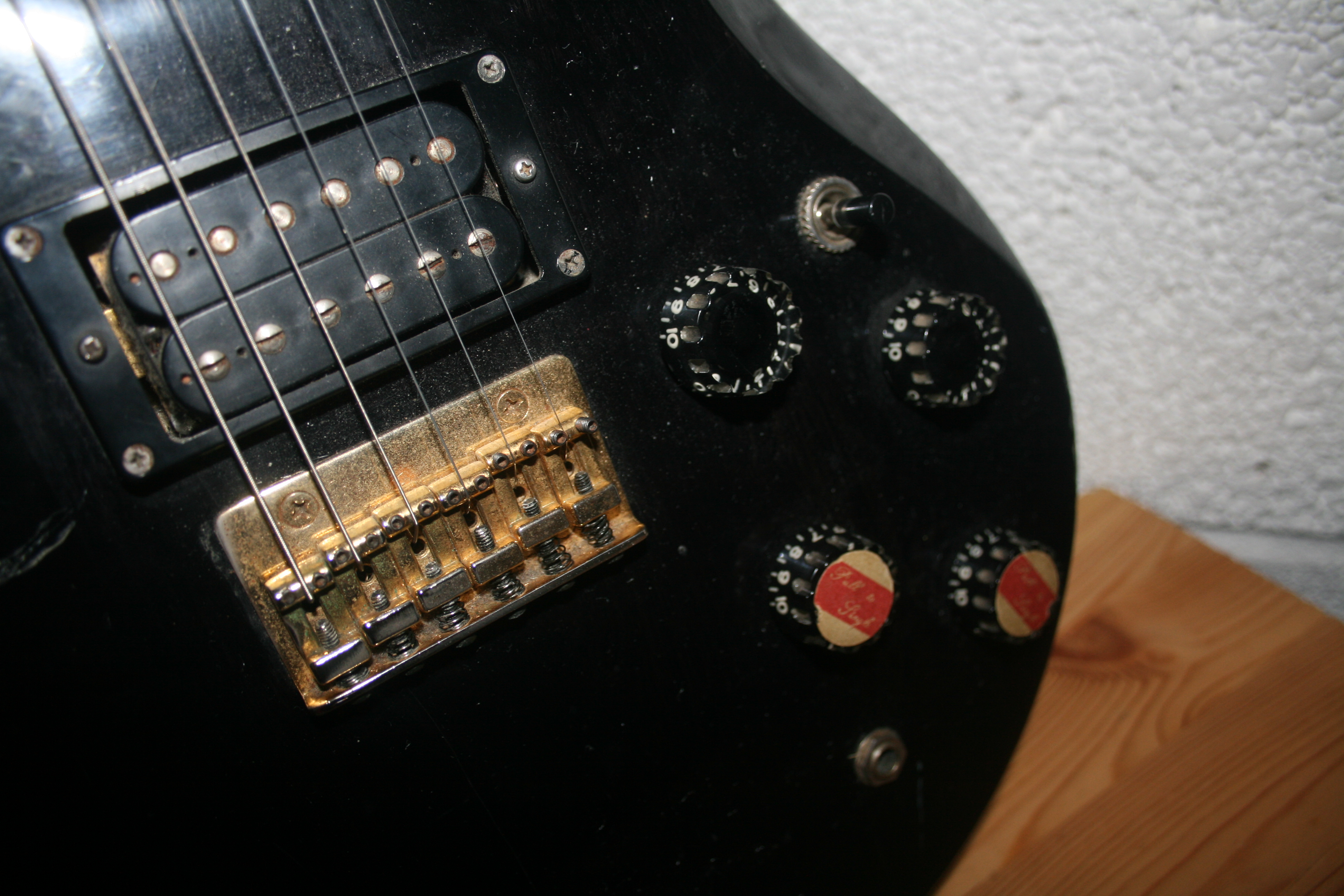

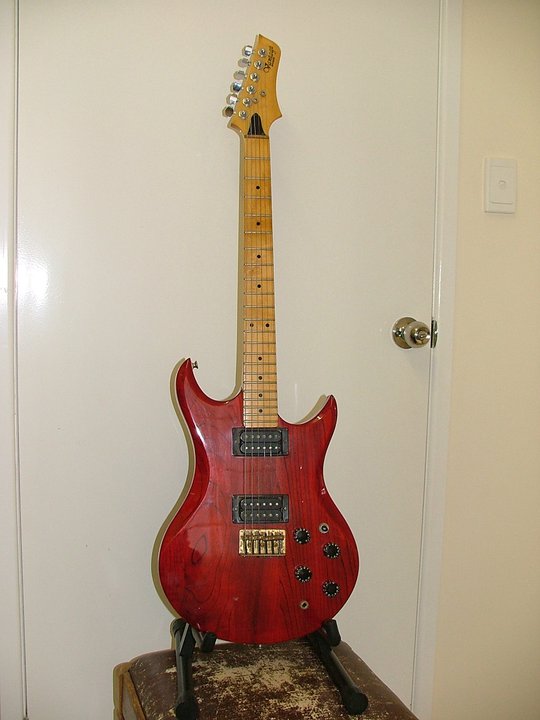

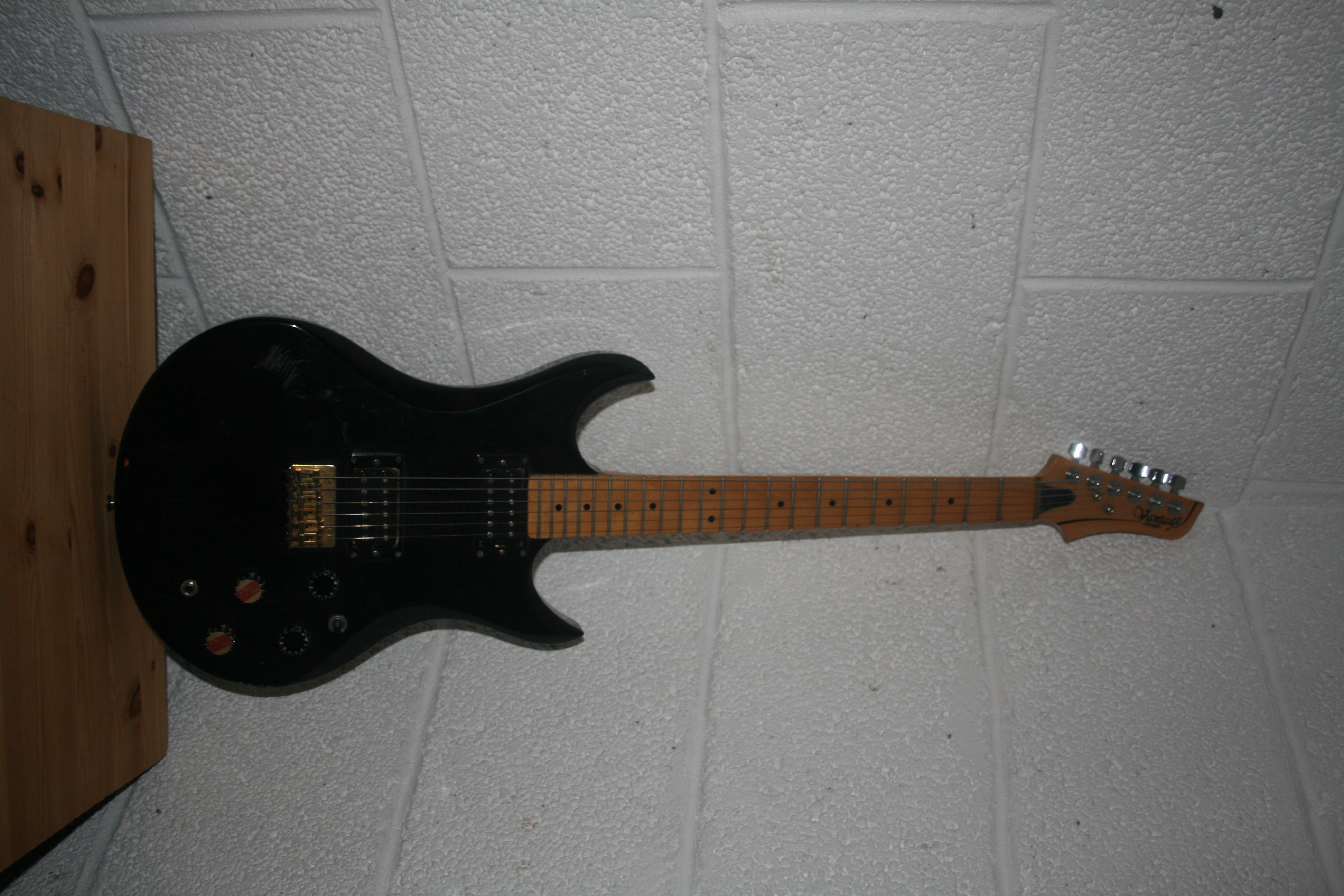

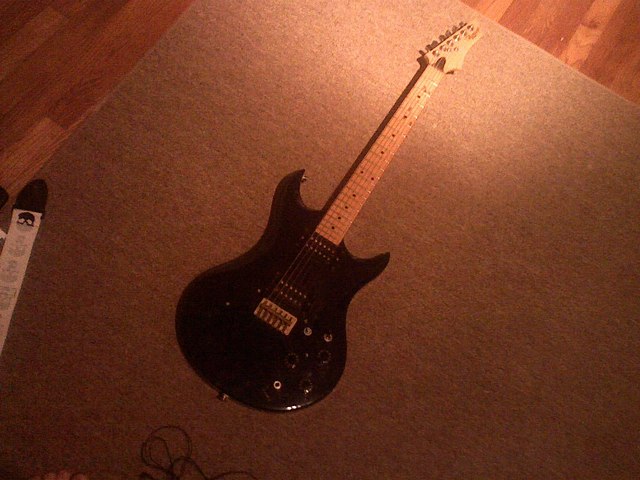

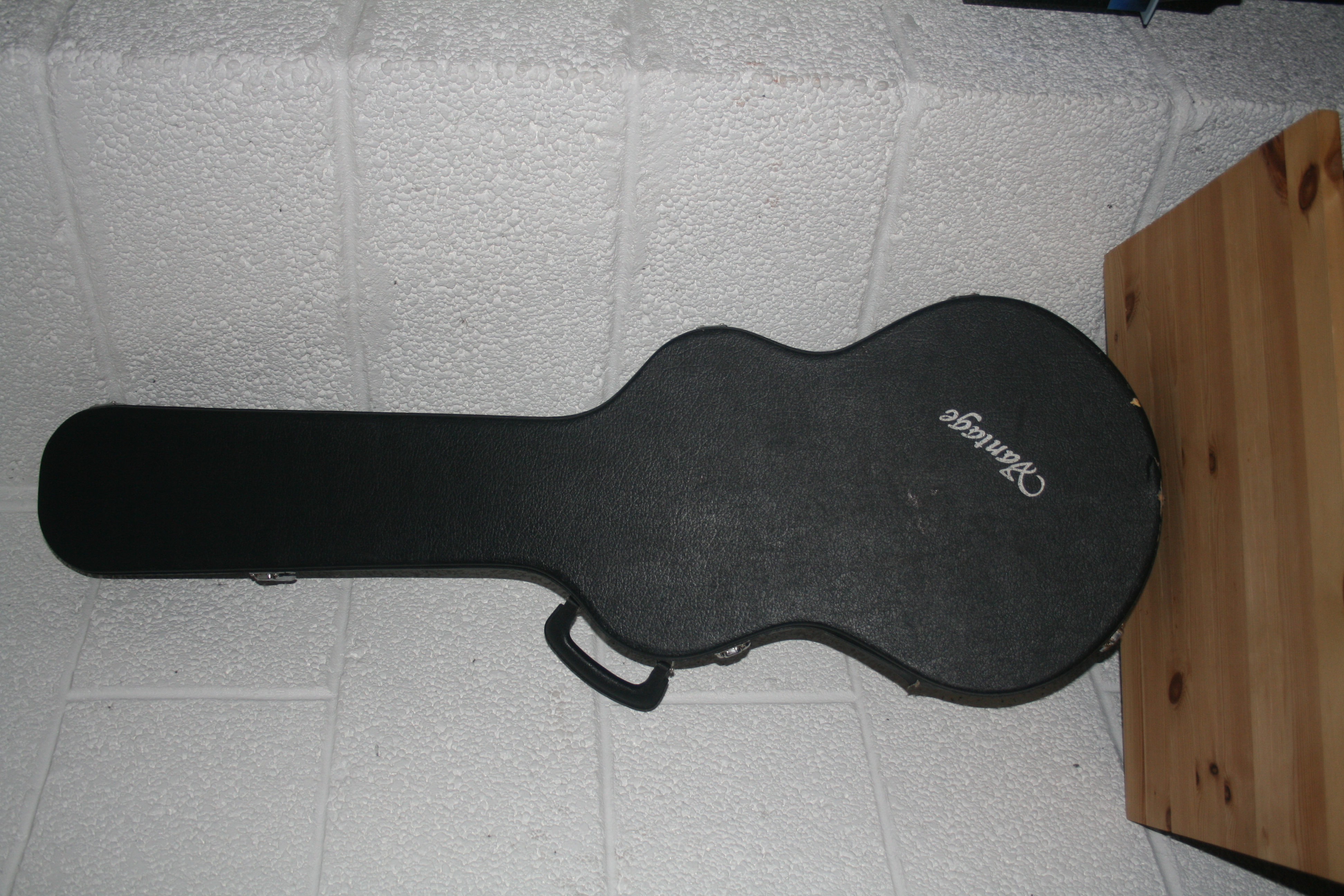

Pictures:
(The guitars may have been modified by it’s owners over the years…)
